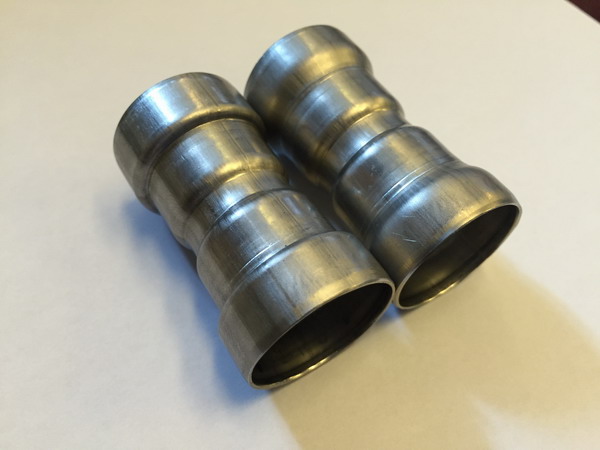

This kind of equipment is speically used for double end forming and processing of pipe fitting at the same time to realize high efficiency, high precision and low cost. In order to meet the needs of different installation conditions in various industries or to save raw materials and reduce producting costs, metal tube/pipe fitting is usually designed for double-end direct forming and processing. This kind of double end tubeforming machine is mainly used for double end processing at the same time. The double head shaper can also be combined with other auxiliary facilities into a production line, such as the fully automatic production line applied to the following product. The production line is divided into seven parts : part 1 and part 2 are automatic feeding device; Part 3 is double head extrusion forming machine; part 4 is automatic transposition conveying device; part 5 is spinning forming machine; part 6 is discharging device; part 7 is control system. This production line is mainly used for the below tube processing. The equipment structure design is reasonable, has enough static, dynamic rigidity, the operation is flexible. The equipment can realize both ends of tube forming at the same time, its control system technology is advanced, to achieve high efficiency, high precision, high reliability.

1.Machine is composed of two parts: extrusion forming machine and spinning forming machine.

2.Both extrusion forming machine and spinning forming machine can be designed with double heads.

3.The extrusion forming machine is equipped with 2 stations at each end.

4.There are 2 positions at each end of the spinning machine.

5.In the front section of the wxtrusion forming machine is installed with a discharge rack, the operator only needs to discharge the material in batches to the material rack can be, by the mechanical conveyor device fully automatic transport to the extrusion forming machine clamping position.

6.The two parts of the main forming machine are connected by mechanical converying device.
