General Introduction

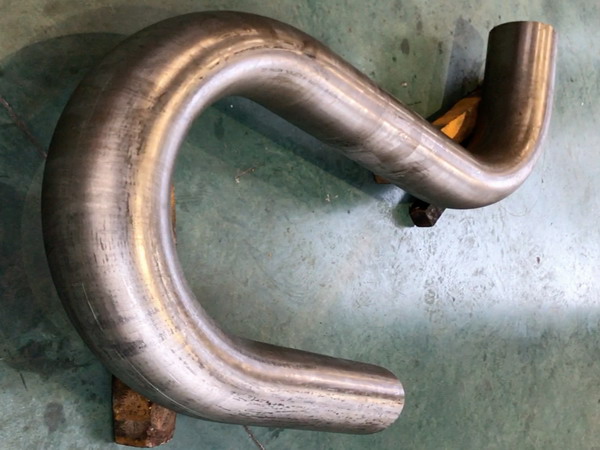

Heavy Duty CNC Pipe Bender, CNC Pipe Bender, which controlled by PC based industrial computer, uses special softwares and technology. They are driven by multi-axis of servo motors and servo hydraulics. Advanced automatic functions, such as feeding, anglerotating, tooling change, read drawings, edit and modify programs,self-correcting rebound data, self-correcting elongation data, material loadingand unloading, inspecting tubes, failure diagnose, are available in thesemachines. They are mainly used in ship building, ocean engineering,petrol-chemical industry, boiler, nuclear industry and so on. Max. capabilityof this series of machines is OD 450 mm with min. radius 1.5D. The machineis able to bend thin/thick wall tubes and alloy tubes into complex 3D part without heating. High quality parts, high efficiency, high accuracy, high automatism, low cost and low labor intensity are the advantages of these machines. It is the ideal equipment of ship building, ocean engineering,petrol-chemical industry, boiler, nuclear industry and so on.

Feature Highlights

1.PC based computer adopts WINDOWS XPoperation system.

2.Auto feeding and angle rotating function.

3.Multi-radius and tooling change function.

4.Data input: Y.B.C or X.Y.Z. YBC and XYZinterchangeable.

5.Create craft files from a drawing.

6.Off-line edit software function.

7.Storage capability: non-limited.

8.Material rebound and elongationcompensation function.

9.3D Simulation and interference function.

10.Diagnoses and Warning of wronginformation.

11.Feeding Model: End grip andrecapture.

12.Program transmit: (1)Flash Disc(2)Internet (3)Compact Disc.

13.Prevention of ovality and wall thicknessreduction functions.

14.Mandrel lubrication function.

King Mazon CNC pipe bender can read 3D digital model (such as.* CATPart,.*STP) and automatically convert them into working parameters of the equipment. It has the function of calculating and compensating the bending springback database and the reverse compensation according to the actual value measured by the measuring instrument. Available for real-time communication with measuring equipment such as TubeInspect and articular arm measuring instrument, and compatible with actual bending data of catheter. It has the function of online measurement and automatic reverse correction of pipe bending process parameters. It is equipped with the interface to realize communication with the robot, so as to set up the production line with automatic feeding and unloading function of the robot.

Technical Specification
