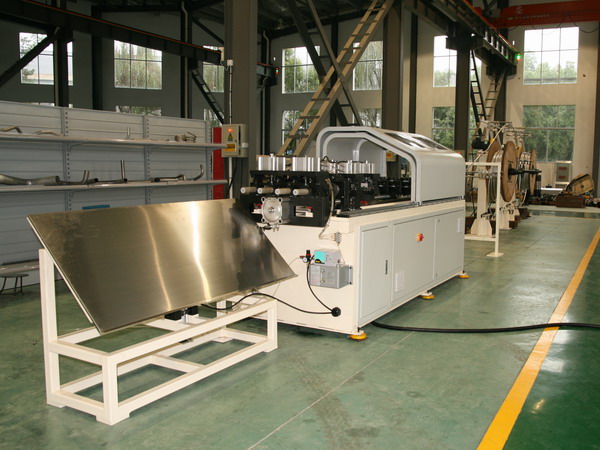

1. The straight cutting machine is a servo motor driven coil straightening cutting machine, with three-station straight cutting function and at the same time with a station straight tube automatic feeding and automatic cutting function.

2. The use of touch-screen computer and PLC programmable controller to achieve the equipment of the digital automation control.

3. Design the four positions of automatic loose material and straight cutting station, one can simultaneously process four different specifications of the material.

4. The structure of the use of coil manual feeding, facade and plane in both directions straightening and the whole circle system, the outer hob cutting brass, automatic copper or aluminum tube feeding, straightening, length cutting, pull off , Resetting, etc. Straightening cut the necessary action of the coil.

5. Rally automatic discharge device, the device used to support the coil, single-station structure carrying weight ≤ 200Kg.

6. Servo motor drive feed, a feed up to 1000mm, more than 1000mm can be fed several times to complete.

7. Make the feed length accuracy less than ± 0.1mm.

8. Feed length can be set directly on the touch screen, the device automatically.

9. The use of external hobs plus roller wheel cutting device, the minimum cutting length ≤ 80mm.

10. Feeding mode can be set to one or more times, so that the feed length can not be limited by the length of the device.

11. The machine straight pipe cutting function is a servo motor drive feed semi-automatic CNC straight pipe cutting machine station.

12. To achieve the manual feeding machine to complete the automatic feeding, fixed length, cutting a full cutting of a material.

13. The second material requires manual loading of the material into the fixture.

14. The use of touch-screen computer and PLC programmable controller, to achieve the length of equipment, digital automation and control.

15. Mainly used for cutting copper, aluminum and other non-ferrous metals and non-metallic pipe.
