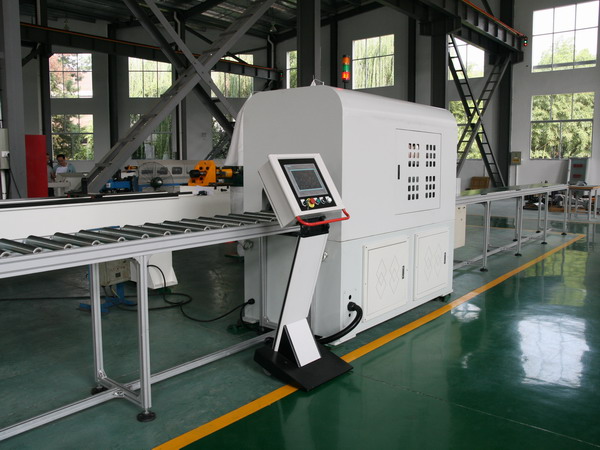

High Speed Disc Saw Machine for AluminumAccurate Cutting Feature Highlights

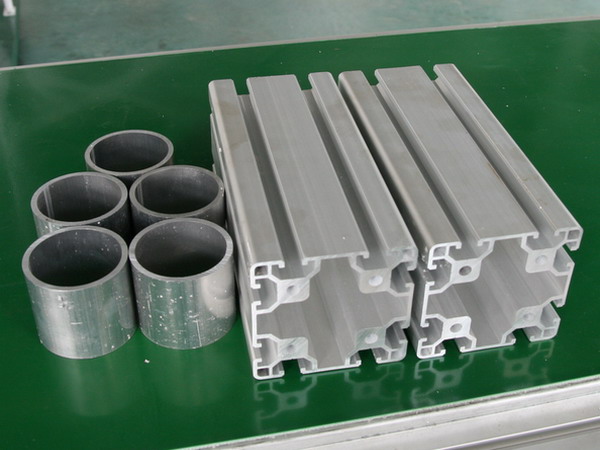

1. This equipment adopts TCT Saw Blade;it's a special-purpose equipment for accurate cutting the  aluminum and copper.

2. Adopt the touch screen and PLC tocontrol servo motor feeding system and full automatic cutting function.

3. Horizontal movements provide reliablecutting.

4. Clockwise rotating blade starts cuttingfrom the upside of material, all the cutting scrap can easily go tothe recovery system.

5. The blade was installed by a gland andfixed threaded, this design ensures the high speed rotating and cutting.

6. Feed unit have pneumatic and hydraulicpower, provide a reliable feeding motion.

7. Adopt own proprietary technology,section finish level are 2 grad higher than normal cutting.

8. Adopt benchmark locate and double endsholding, ensures the cutting vertically.

9. The servo motor feeding system and ballscrew transmission device ensures the cutting precision ≤0.1mm.

Contacts：Lorraine Chen

Tel: 0086-578-3185181

Mobile: 0086-15005787217

Fax: 0086-578-3183898

Skype: kingmazon02

Email: kinga@pipebender.com.cn

High Speed Disc Saw Machine for AluminumAccurate Cutting Technical Specificaiton

Item    Specifications

Max. Aluminum Width for Cutting  ≥300       mm

Max. Aluminum Thickness for Cutting    ≥95         mm

Max. Rotating Speed of Shaft ≥2800     r/min

Min. Cutting Length         ≤10         mm

Max. Blade Width    ≥4.5        mm

Max. Blade OD         ≤410       mm

Air Pressure     0.5-0.8     MPa

Main Motor Power  2.2-3.7     kw

L*W*H     3200×2200×2100     mm

Weigh       2400         kg
